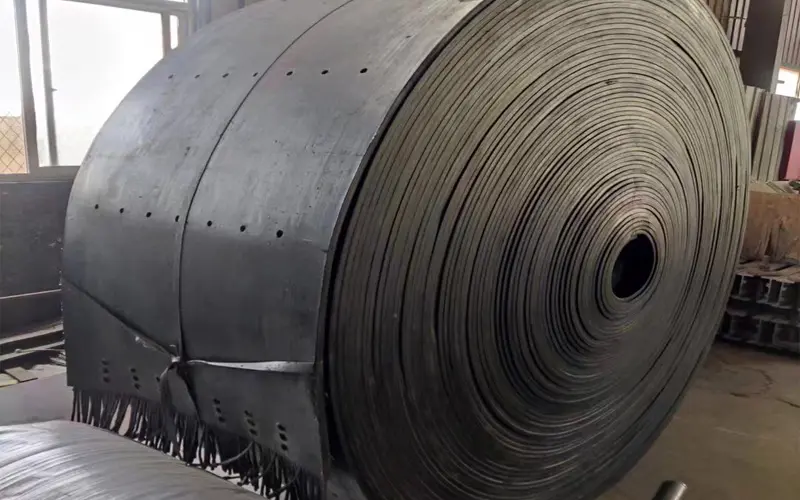

鋼絲繩芯輸送帶

Steel Cord Conveyor Belt

特點：拉伸強度大，壽命長，使用伸長率小，成槽性

好，耐曲撓性好，适用于長距離、大運量、高速度物料

輸送。

用途：可廣泛用于煤炭、礦山、港口、冶金、電力、化工等領

域物料輸送。

分類：

(1) 按覆蓋膠性能可分爲：普通型、阻燃型、耐寒

型、耐磨型、耐熱型、耐酸堿型、低能耗型等品種。

(2) 按内部結構可分爲：普通結構型、橫向增強型、

預埋線圈防撕裂型。

Character: High tensile strength, impact resistant, low elongation,

good troughability, flexible. Available for the material handling of

the large distance, heavy duty and high speed.

Application: Material handling of coal, mining, port, metallurgy,

power，chemical;

Cover Grade: Normal, low rolling resistant, fire-resistant, cold-

resistant, abrasion-resistant, heat-resistant, acid/aIkali-resistant

etc;

Cord Structure:K6×7+1WS; K6×19+1WS;

Internal Fabrication: Standard, cross rigid, rip check sensor;

Technical Standard: GB/T9770，DIN22131，DIN22103,AS1333,JIS

K6369.

ST系列鋼絲繩芯輸送帶主要技術參數

Technical Data for Steel Cord Conveyor Belt

	ST630	ST800	ST1000	ST1250	ST1600	ST2000	ST2500	ST3150	ST3500	ST4000	ST4500	ST5000	ST5400	ST6300	ST7000	ST7500
縱向拉伸強度(N/mm)Tensile Strength	630	800	1000	1250	1600	2000	2500	3150	3500	4000	4500	5000	5400	6300	7000	7500
鋼絲繩公稱直徑Max Diameter of Cord	3.0	3.5	4.0	4.5	5.0	6.0	7.5	8.1	8.6	8.9	9.7	10.9	11.3	12.3	13.5	15.0
鋼絲繩間距Pitch of Cord	10	10	12	12	12	12	15	15	15	15	16	17	17	18	19	21
上覆蓋層厚度Top Rubber Cover Thickness	5	5	6	6	6	8	8	8	8	8	8	8.5	9	10	10	10
下覆蓋層厚度(mm )Bottom Rubber Cover Thickness	5	5	6	6	6	6	6	8	8	8	8	8.5	9	10	10	10
膠帶參考重量(kg/㎡)Weight	18	19.5	22.5	24	25.9	31.8	36.1	40.4	43.8	45	45.1	50.7	53.4	59.6	63.7	68.7
寬度 Width	鋼絲繩根數（CordNumber>
800	75	75	63	63	63	63	50	50	50
1000	95	95	79	79	79	79	64	64	64	64	59	55	55	54	49	45
1200	113	113	94	94	94	94	76	76	77	77	71	66	66	63	59	54
1400	133	133	111	111	111	111	89	89	90	90	84	78	78	74	69	63
1600	151	151	126	126	126	126	101	101	104	104	96	90	90	85	80	72
1800		171	143	143	143	143	114	114	117	117	109	102	102	96	90	82
2000			159	159	159	159	128	128	130	130	121	113	113	107	101	91
2200						176	141	141	144	144	134	125	125	118	111	100
2400						193	155	155	157	157	146	137	137	129	121	109
2600						209	168	168	170	170	159	149	149	140	131	119
2800						230	184	184	184	184	171	161	161	151	142	129
3000						247	198	198	198	198	185	174	174	148	152	138
3200						264	211	211	211	211	198	186	186	158	162	147

*膠帶重量根據覆蓋膠厚度、密度變化

說明：輸送帶單卷長度100m-1500m,受厚度、寬度、運輸、安裝等條件限制，每卷長度由供需雙方确定。

*Belt weight varies from different rubber cover thickness and density.

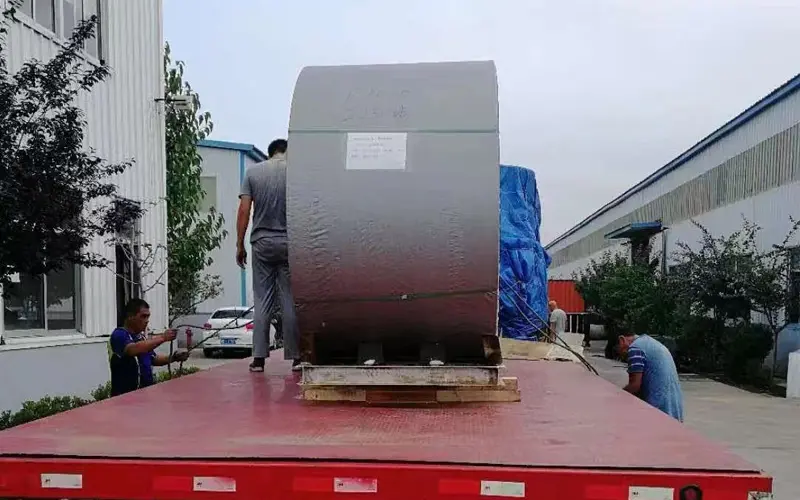

Notes： 100m-1500m Per Roll

Belt beyonds the above specification can also be made as required.

鋼絲繩芯輸送帶

Steel Cord Conveyor Belt

建議鋼絲繩芯輸送帶的使用輸送機小滾筒直徑（Min.Pulley Diameter)

* ST系列執行GB/T9770标準

*ST series are produced by GB/T9770 standard
